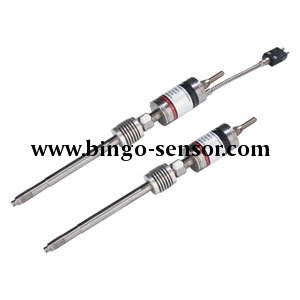

  • Melt Pressure Transmitter PT-M003,PT-M003T

Melt Pressure Transmitter PT-M003,PT-M003T

| See more "Melt High Temperature Type" Products

product category: Melt High Temperature Type
Model: PT-M003,PT-M003T
Viewed:

OnLine Service :
Print this page E-mail Us
Live Messenger Skype Online

Product Detail

PT-M003,PT-M003T Series Melt Pressure Transmitter (rigid stem & sanitary) can measure
the pressure and temperature in one point, which can be widely used in Medicine & Food
process equipment. The model
PT-M003T is with thermocouple. Zero & span can be
adjustable; with amplified signal can be connected with PLC. It has the advantages
of high precision and reliable, good quality, internal 80% calibration.



Pressure range 0-3.5MPa… 0-150MPa(0-500psi…0-20000psi)
Over Pressure 1.5 X FSO
Combined Error ±0.5% FSO, ± 1.0% FSO
(Including Linearity, Repeatability & Hysteresis)
Output 3.33 mV/V, 2mV/V
Input Voltage 10VDC
Repeatability +/- 0.2%FSO
Bridge Resistance Input: 345 Ohms minimum
Output: 350 Ohms +/- 10%
Internal Shunt Calibration (R-Cal) 80% FSO +/- 1%
Insulation Resistance 200 megohms @ 100 Vdc
Max Diaphragm Temperature 260℃
Mounting Torque 500 inch/lbs. maximum
Standard Wetted Parts Diaphragm coated 15-5 PH SST
Process connector 1/2″-20UNF, M14×1.5, M18×1.5 Optional
