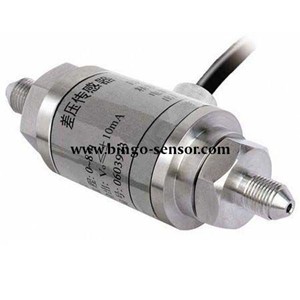

Differential Pressure Transmitter PT-DP006
| See more "Differential Pressure Type" Products
product category: Differential Pressure Type
Model: PT-DP006
Viewed:
| OnLine Service : | |
 Print this page |
 E-mail Us |
 Live Messenger |
 Skype Online |
Product Detail
PT-DP006 series differential pressure sensor is made use of advanced micro-machining
technology, better accuracy, stability and strong impact resistance, the product has a
high resistance to overload, better sensitivity and higher resolution, can measure positive
and negative the symmetric differential pressure range, the best choice of the micro-differential
pressure, flow field, flow velocity, flow measurement
| Pressure range | -100KPa……0～5MPa |
| Static pressure | 2×F·S |
| Zero output | V0≤±3mV |
| Full scale output | VFS=100mV±25%、VFS=50mV±30% 、VFS=10mV±30% |
| Power supply |
Constant current：1～4mA； Constant voltage：6～9VDC |
| linearity | <±0.1%FS |
| Repetition | <±0.05%FS |
| Delay | <±0.05%FS |
| Input impedance | 0.6～6KΩ |
| Compensation temperature | -10℃～+70℃ |
| Working temperature | -40℃～+85℃ |
| Insulation resistance | >100MΩ/50V |
| Insulating strength | >500MΩ/500V |
| Pressure connection | M20×1.5、M12×1、internal thread |
| Electrical connection | Cable |
| Medium | Liquid compatible with 316 stainless steel |
| Protection Grade | IP65 |
| Explosion-proof Grade | ExiallCT5 |
