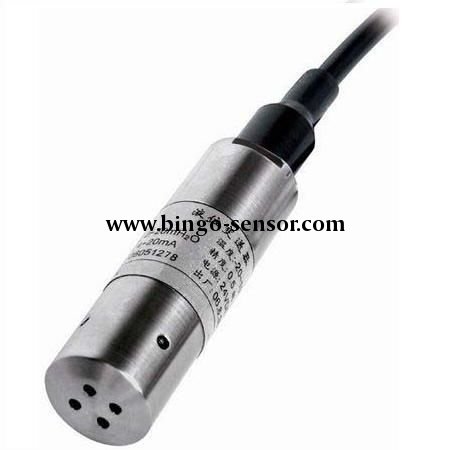

Submersible Pressure Transmitter PT-S002
| See more "Submersible Type" Products
product category: Submersible Type
Model: PT-S002
Viewed:
| OnLine Service : | |
 Print this page |
 E-mail Us |
 Live Messenger |
 Skype Online |
Product Detail
PT-S002 type silicon piezoresistive level transmitter level sensor based on the measurement
of the static pressure of the liquid level proportional to the depth of the liquid, and after
amplification circuit converts the standard current voltage signal output, establish output
level electrical signals depth linear correlation of liquid depth measurement. In the structure，
it use waterproof wire and stainless steel housing sealed connection, snorkel in the cable
with the outside world, the design of the internal structure is anti-condensation. Has good
stability and reliability, and are widely used in the measurement and control of the water
level in the field of environmental protection, water conservancy, power plants, urban water
supply and drainage, hydrology exploration.
| Pressure range | 0～1……2……3……4……5……10……200m |
| Output |
4～20mADC(two wire), 0～5VDC(three wire or four wire), 0～10mADC(three wire or four wire) |
| Accuracy | ≤±0.25%FS（typical）；≤±0.5%FS（max） |
| Years stability | ≤±0.1%FS（typical）；≤±0.2%FS（max）； |
| Overload capacity | 150% |
| Supply voltage | 12～28VDC(typical：24VDC) |
| Compensation temperature | -20℃～+70℃ |
| Working temperature | -40℃～+85℃ |
| Insulation resistance | >100MΩ/50V |
| Insulating strength | >500MΩ/500V |
| Manometry way | Immersion |
| Electrical connection | Waterproof seal cable wire |
| Medium | Liquid compatible with 316LSS |
| Protection Grade | IP65 |
| Explosion-proof Grade | ExiallCT5 |
