product category: Paddle Type Flow Switch

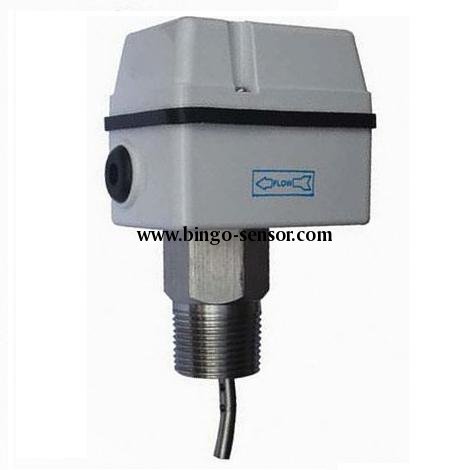

Model: FS-M1001
Viewed:
| OnLine Service : | |
 Print this page |
 E-mail Us |
 Live Messenger |
 Skype Online |
Product Detail
●To sense the flow change in the liquid lines as so to protect equipment against damage
which could be cased by flow stopping in the pipeline. Liquid flow either exceeds or drops
below the set flow rate
●Allowed Liquids Temperature:0℃～120℃。
●Set Flow Rate can be adjusted according to different flow requirment。
●SPDT micro switch ensures the quick action and guarantee the transient of the switch。
| Connection | Connection | Notes | Accuracy | ||
| 1″-11½NPT | Screw | Red Case | 5% | ||
| ¾″-14NPT | Screw | ||||
| ½″-14NPT | Screw | ||||
| 1″-11½NPT | Screw | White Case | 2-3% | ||
| ¾″-14NPT | Screw | ||||
| ½″-14NPT | Screw | ||||
| Rated Voltage Rated Amps | A.C.125 ～ 250V | Power (Cosmp.) | |||
| Non-inductive Current | 12A | 1 | |||
| Full Load | 12A | 0．75 | |||
| Locked Roter | 72A | 0．45 | |||
| Pipe size (in) | 1 | 1-¼ | 1-½ | 2 | 2-½ | 3 | 4 | 5 | 6 | 8 | |
| Min. | Flow lower,1-2 closed | 1 | 1.3 | 1.7 | 3.1 | 4.1 | 6.2 | 8.4 | 12.9 | 16.8 | 46.6 |
| Flow | Flow lower,1-3 closed | 0.6 | 0.8 | 1.1 | 2.2 | 2.8 | 4.3 | 6.1 | 9.3 | 12.3 | 38.6 |
| Max. | Flow lower,1-2 closed | 2 | 3 | 4.4 | 6.6 | 7.8 | 12 | 18.4 | 26.8 | 32.7 | 94.2 |
| Flow | Flow lower,1-3 closed | 1.9 | 2.8 | 4.1 | 6.1 | 7.3 | 11.4 | 17.3 | 25.2 | 30.7 | 90.8 |
